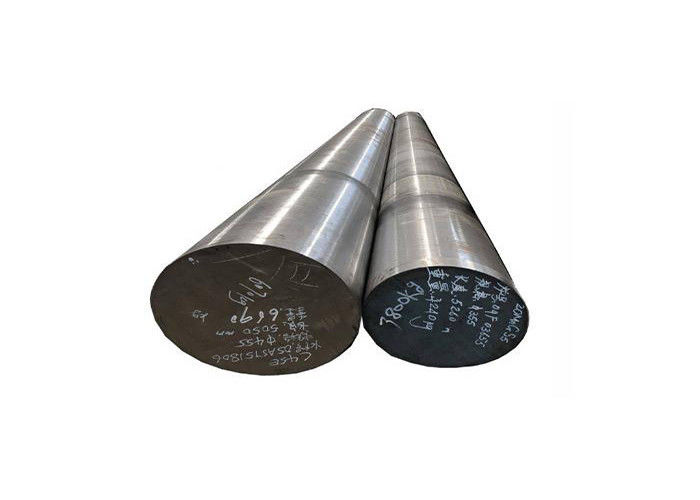

6000mm ASTM B348 Titanium Alloy Bar GR7 For Metallurgy

Out of all titanium alloys, the most widely used is grade 5. And therefore it has been rightfully named as the workforce amongst the other alloys. ASTM B348 Grade 5 Titanium Round Bar, which is referred to as an alpha-beta alloy exhibits properties similar to pure titanium including high strength and low density. As an alpha-beta alloy, Grade 5 Titanium Bar constitutes about 4% - 6% β-phase stabilizers. In his case, the beta stabilizer used is 4% vanadium. The addition of Vanadium in the alloy has a stabilizing effect on the ductile β-phase of the Grade 5 Titanium Round Bar. And since there is stability in the alloy, bar manufacturers are able to process the alloy by hot working the alloy. Just as vanadium acts as a phase stabilizer, the addition of 6% aluminum in the ASTM B348 Grade 5 Hex Bar is an α-phase stabilizer.



Item Name	astm b348 Titanium alloy grade 5 round bar
Material	pure titanium and titanium alloy
Standard	ASTM B348, ASTM F67, ASTM F136, AMS4928
Brand	China brand:TA1, TA2, TC4, TA9, TA10, TA18 Amercian brand:gr1, gr2, gr5(Ti-6Al-4V), gr7 gr9, gr12, gr23, Ti15333
Shape	titanium round rod/bar, titanium square rod/bar titanium rectangle rod/bar, titanium hex rod/bar
Application	Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.



Chemical Composition: of titanium rod/bar

Grade	Chemical Composition (<%)
	Ti	Al	V	Fe	C	N	H	O	Other max
Gr1	Blance	---	---	0.2	0.08	0.03	0.01	0.18	0.4
Gr2	Blance	---	---	0.3	0.08	0.03	0.01	0.25	0.4
Gr3	Blance	---	---	0.3	0.08	0.05	0.01	0.35	0.4
Gr4	Blance	---	---	0.5	0.08	0.05	0.01	0.4	0.4
Gr5	Blance	5.5-6.75	3.5-4.5	0.4	0.08	0.05	0.01	0.2	0.4
Gr7	Blance	---	---	0.3	0.08	0.03	0.01	0.25	0.4
Gr9	Blance	2.5-3.5	2.0-3.0	0.25	0.08	0.03	0.01	0.15	0.4
Gr12	Blance	---	---	0.3	0.08	0.03	0.01	0.25	0.4



Mechanical property: of titanium rod/bar

Grade	Tensil Strength		yield strength		Elongation(%)
	ksi	Mpa	ksi	Mpa
1	35	240	20	138	24
2	50	345	40	275	20
3	65	450	55	380	18
4	80	550	70	483	15
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
12	70	438	50	345	10



FAQ

1. Who are we?
We are based in Jiangsu, China, start from 2019,sell to Western Europe(30.00%),Africa(20.00%),Northern Europe(20.00%),Domestic Market(10.00%),North America(5.00%),South America(5.00%),Southeast Asia(5.00%),South Asia(5.00%). There are total about 5-10 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Rolled bar in peeled,Rolled bar in black skin,Forged steel round bar,Forged steel square bar,Tool steel bar

4. Why should you buy from us not from other suppliers?
We are top agent of several different steel mills in Asia and Europe,so we have ability to offer best quality products and services to our clients.We have international technology.
