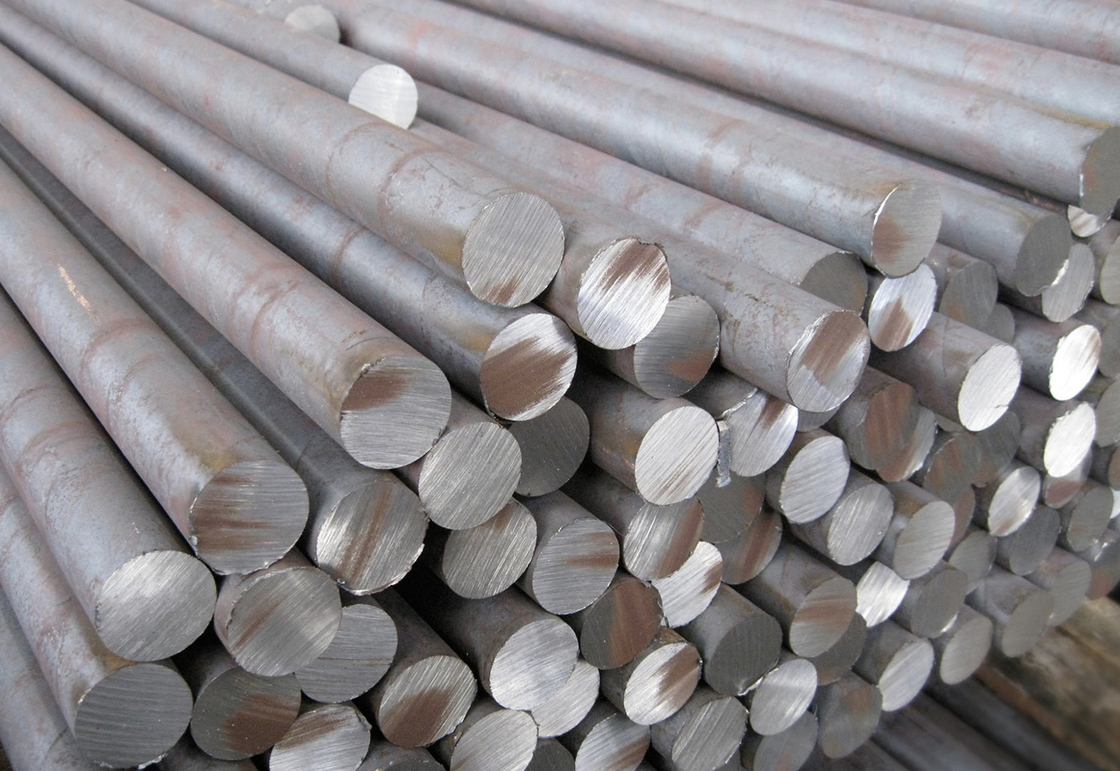

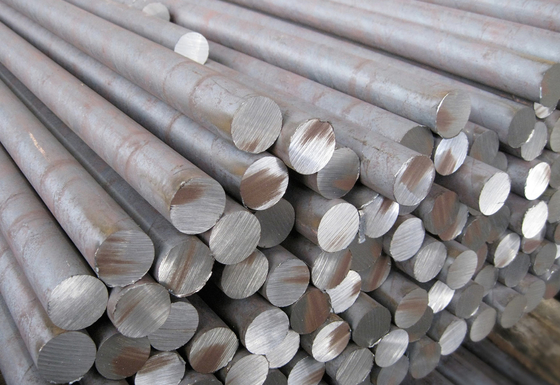

GB/T 30CrMnSiA Alloy Round Steel Bar Annealing

GB/T 30CrMnSiA Alloy Round Steel Bar Annealing
GB/T 30CrMnSiA Alloy Round Steel Bar Annealing

Large Image :  GB/T 30CrMnSiA Alloy Round Steel Bar Annealing

Product Details:
Place of Origin: China
Brand Name: Evergrowrs
Model Number: GB/T 30CrMnSiA
Payment & Shipping Terms:
Minimum Order Quantity: 25ton
Price: USD 700-1200/Ton
Packaging Details: Standard seaworthy package
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 Ton/Tons per Month
Contact Now
Detailed Product Description
Standard: GB, ASTM, DIN,JIS Diameter: 4-1600mm
Length: Below 16 Meters Surface: Black, Bright, Polished, Peeled, Or Upon Request
MOQ: 20MT
High Light:

GB/T 30CrMnSiA Alloy Round Steel Bar

,

Annealing Alloy Round Steel Bar

,

16M Hot Rolled Steel Bars

GB/T 30CrMnSiA Alloy Round Steel Bar

Standard



ASTM A213; ASTM A335; ASTM A519; ASTM A106; ASTM A29; JIS G3462; JIS G3458; JIS G3444; JIS G4053; DIN17175; DIN1629; DIN2391; GB/9948, GB/6479; GB/T8162; GB/T8163; GB/T 3077; EN 10297; EN 10084; EN 10083; ISO 683/11; IOS 683/10; IOS 683/1; etc.



Chemical Requirements, Composition, %



GB/T 30CrMnSiA Alloy Round Steel Bars



Alloy structural steel is a kind of steel which is used as mechanical parts and various engineering components,whichcontains one or more alloy elements.

  • 30CrMnSiA is a medium carbon with high strength and poor welding performance.
  • 30CrMnSiA has high strength and sufficient toughness after quenching and tempering, and hardenability is also good. After quenching and tempering, the material can be used as a grinding wheel shaft, gears and sprockets.
  • 30CrMnSiA has good processability, small processing deformation and good fatigue resistance. For shaft and piston parts and so on. It is used in various special wear parts such as automobiles and airplanes.
  • The material is darker in color and galvanized can add aesthetics and rust.

- EAF+(ESR) or EAF+LF+VD+(ESR)

- HOT rolled; Cold rolled; Forged; Cold Drawn

- Heat Treatment: Untreated, Annealing, N+T, Q+T

- Smelting: EAF+LF+VD (+ESR)

- Surface Finish: Black, Rough Machined, Peeled, Turned or upon request

- UT 100% passed

- Cutting service provided

- Third Party inspection is acceptable (SGS, BV etc.)



Standard



ASTM A213; ASTM A335; ASTM A519; ASTM A106; ASTM A29; JIS G3462; JIS G3458; JIS G3444; JIS G4053; DIN17175; DIN1629; DIN2391; GB/9948, GB/6479; GB/T8162; GB/T8163; GB/T 3077; EN 10297; EN 10084; EN 10083; ISO 683/11; IOS 683/10; IOS 683/1; etc.



Chemical Requirements, Composition, %



Grade C Si Mn P S Ni Cr Cu
30CrMnSiA
0.28-
0.34
0.90-
1.20
0.80-
1.10
0.025
max
0.025
max
≤
0.40
0.80-
1.10
≤
0.25





Mechanical properties



Yield strength σs/MPa (>=) Tensile strength σb/MPa (>=)

Elongation

δ5/% (>=)

Reduction of

area ψ/% (>=)

 Impact absorbing energy Aku2/J (>=)

Hardness HBS

100/3000 max
835 1080 10 45 39 229





Production Inspection

Our heat treatment center with complete product testing equipment, for instance: the scanning electron micro sconezz(SEM).the transmission electron microscope(TEM)the material testing machine. the large-type metallurgical microscope,the endurance testing machine,the IAS-4 image analyzer, the American ARL direct- reading spectrometer, the American the electric ICP emission spectrometer, the American LECO infrared carbon sulfur analyzer, the hydrogen analyzer, the oxygen and nitrogen analyzer,the Swiss end harden ability tester, the German Zeiss inverted microscope, the Japanese CARTON stereo microscope, the 500J impact testing machine, the 500N hydraulic universal tester, the water immersion flaw detector, the radio element detector and so on.
