Product Details:
Payment & Shipping Terms:
|
| Alloy Or Not: | Alloy | Standard: | AiSi, ASTM, Bs, DIN, GB, JIS |
|---|---|---|---|
| Diameter: | 7-180mm | Length: | 4-6m Or As Your Requirment |
| High Light:: | M2 High Speed Steel Bar | Type: | Speed Bar |
| High Light: | M2 High Speed Steel Bar,Hot Rolled High Speed Steel Bar,Tungsten Molybdenum Hss Flat Bar |
||

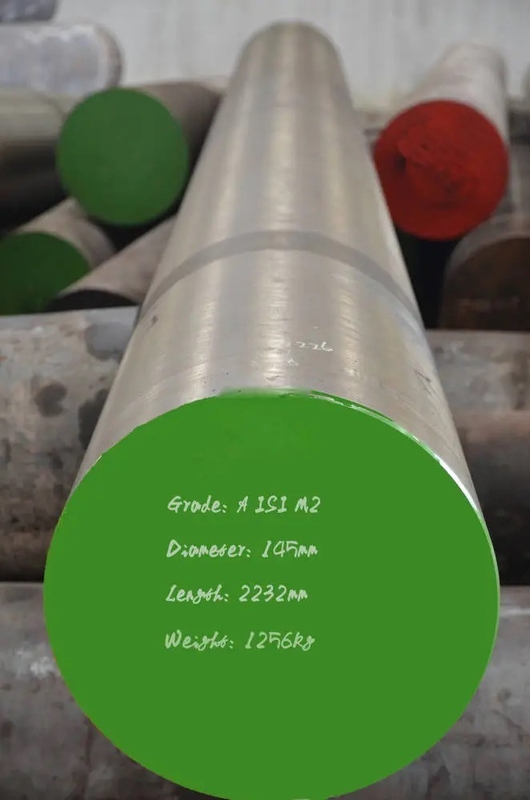

M2 tool steel high speed steel China stockholders and suppliers- Otai Special steel. The M2 high speed steel is known for its balanced combination of abrasion resistance, toughness and good red hardness. M2 is a tungsten-molybdenum high speed tool steel, m2 tool steel is used in a variety of applications and worldwide. M2 tool steel is the most popular high speed steel because of its superior qualities. As a result of its low carbon content, M2 tool steel high speed tool steel has an outstanding combination of toughness properties and abrasion resistance when correctly hardened and tempered.
M2 tool steel equivalent with JIS SKH51, SKH9, DIN WN-r 1.3343, GB W6Mo5Cr4V2
Related Specifications and Equivalent of ASTM M2 high speed tool steel with others HHS Material Standard
|
Country |
American | Germany | Japanese | Chinese |
| Standard | ASTM A600-1999 | DIN 17350-1980 | JIS G4403-2000 | GB/T 9943-2008 |
| Grades | M2 | 1.3343 | SKH51 | W6Mo5Cr4V2 |
Chemical Composition contrast of ASTM M2 high speed tool steel with other Equivalent HSS steel Material
| Grade NO. | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Mo(%) | V(%) | W(%) |
| M2 | 0.78～0.88 | 0.20～0.45 | 0.15～0.40 | ≤0.030 | ≤0.030 | 3.75～4.50 | 4.50～5.50 | 1.75～2.20 | 5.50～6.75 |
| 1.3343 | 0.86～0.94 | ≤0.45 | ≤0.40 | ≤0.030 | ≤0.030 | 3.80～4.50 | 4.70～5.20 | 1.70～2.00 | 6.00～6.70 |
| SKH51 | 0.80～0.88 | ≤0.45 | ≤0.40 | ≤0.030 | ≤0.030 | 3.80～4.50 | 4.70～5.20 | 1.70～2.10 | 5.90～6.70 |
| W6M5Cr4V2 | 0.80～0.90 | 0.20～0.45 | 0.15～0.40 | ≤0.030 | ≤0.030 | 3.80～4.40 | 4.50～5.50 | 1.75～2.20 | 5.50～6.75 |
Applications of M2 high speed tool steel hss
M2 High Speed Steel is used high production machine work and is used for various cutting tool, knife and punch and die applications. Some of these applications include Twist drills, taps, milling cutters, reamers, broaches, saws, and knives.
Processing of tool steel M2
M2 High Speed tool steel round bar and flat sections can be cut to your required sizes. M2 High Speed ground steel bar can also be supplied, providing a high quality tool steel precision ground tool steel bar to your required tolerances. M2 High Speed steel also is available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
Production Inspection
Our heat treatment center with complete product testing equipment, for instance: the scanning electron micro sconezz(SEM).the transmission electron microscope(TEM)the material testing machine. the large-type metallurgical microscope,the endurance testing machine,the IAS-4 image analyzer, the American ARL direct- reading spectrometer, the American the electric ICP emission spectrometer, the American LECO infrared carbon sulfur analyzer, the hydrogen analyzer, the oxygen and nitrogen analyzer,the Swiss end harden ability tester, the German Zeiss inverted microscope, the Japanese CARTON stereo microscope, the 500J impact testing machine, the 500N hydraulic universal tester, the water immersion flaw detector, the radio element detector and so on.
Evergrowing aim:
Competitive price: try best to make best offer
Top quality: 100% comply with customer's standard
JIT delivery: Delivery on time for each order.
One station purchase:we try to supply the material with different condition to our customers.
After service: Response on any quality question and etc.
