Product Details:
Payment & Shipping Terms:
|
| Application: | Tool Steel Bar | Type: | Round |
|---|---|---|---|
| Standard: | ISO, GS, RoHS, TUV ISO 9001 / BV / SGS | Technique: | Forged |
| Dimensions: | Dia 30mm-130mm | Name: | HRC 35-65 Forged Steel Round Bar 6mm For Metal Mining |
| Surface Treatment: | Black Surface,Roungh Turned | ||
| High Light: | HRC65 Forged Steel Round Bar,Metal Mining Forged Steel Round Bar,6mm Alloy Steel Round Bar |
||
| Materials: | Alloy Steel |
| Certification: | ISO, GS, RoHS, TUV ISO 9001 / BV / SGS |
| Applications: | Metal Mining, Cement Plant, Power Station |
| Shape: | Round |
| Specifications: | Dia 30mm-130mm |
| Standard: | Standard |
Product Description

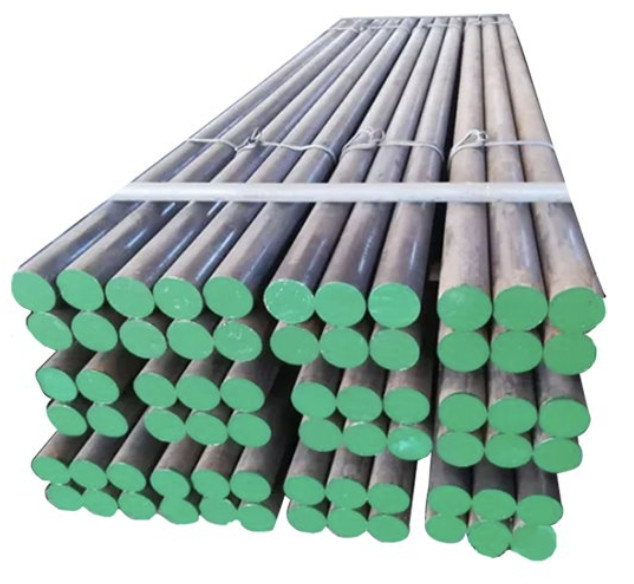

Alloy steel round bar is directly from heated high carbon alloyed steel bar followed by straightening and in-line heat treatment,
tailed to give uniform hardness, high resistance to both abrasion and impact, and resistance to bending.
1. Available size: dia. 30mm - dia. 130mm / length: 3.0m-6.0m & customizable
2. Grade: 60Mn, 65Mn,B2, B3,BL,BG
3. Hardness: HRC 35-65
4. Certification: TUV ISO9001, SGS
Application Areas
· Rod mills
· Mineral processing Plants
Grinding rod Benefits
· Even hardness
· Unbreakable
· Grinding resistant
· High impact value
· High combined efficiency of grinding mill
Forged Steel rod Classification and Chemical Composition
| Name | C | Mn | Si | S | P | Cr |
| SY-03-60Mn | 0.57-0.65 | 0.70-1.10 | 0.17-0.37 | 0.05max | 0.05max | 0.25max |
| SY-04-65Mn | 0.62-0.75 | 0.90-1.20 | 0.17-0.37 | 0.05max | 0.05max | 0.25max |
| SY-05-B2 | 0.75-0.85 | 0.70-0.90 | 0.17-0.35 | 0.05max | 0.05max | 0.40-0.60 |
| SY-06-B3 | 0.50-0.65 | 0.40-1.00 | 1.35-1.85 | 0.05max | 0.05max | 0.80-1.20 |
| SY-07-BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.05max | 0.05max | 0.70-1.20 |
| SY-08-BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 0.05max | 0.05max | 1.0-1.70 |
Grinding steel /rods data
| DIA(mm) | 30-50 | 60-70 | 75-90 | 100-120 | 130 | hardness |
| Length | 3.0-6.0 | 3.0-5.82 | 3.0-6.0 | customizable | customizable | HRC35-60 HRC>60 |
| We can produce the grinding rod according to the length of the customer's mill. | ||||||
