Product Details:
Payment & Shipping Terms:
|
| Model NO: | 1045 S45c C45 | Alloy Or Not: | Alloy |
|---|---|---|---|
| Application: | Black | Standard: | DIN, JIS, AISI, GB |
| Payment Term:: | T/T Or L/C | Technics: | Hot Rolled |
| High Light: | Anti Friction Bearings Steel Round Bar,Hot Rolled Structural Steel Round Bar,1045 Alloy Steel Round Bar |
||
Basic Info.
Model NO.: EN31/GCr15/SAE52100/SUJ2
Quality Assurance: 100% UT passed
Delivery Time: 7days
Condition: stock

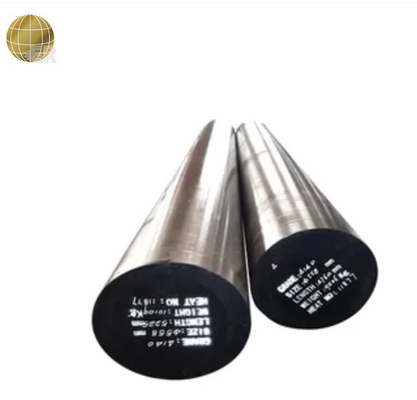

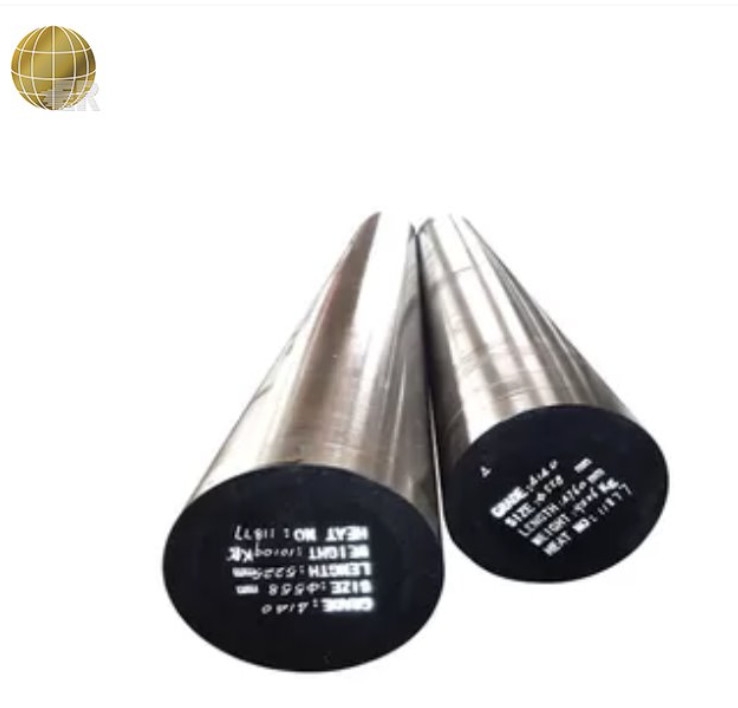

Delivery condition: hot rolled black surface
Transport Package: Standard/Customized
Specification: standard/customized
Origin: Jiangsu,China
Product Description
GB GCr15 bearing steel is GB standard Alloy Bearing steel, It belong to the high quality high carbon, alloy chromium,manganese steel.
GB GCr15 properties is a chromium,manganese alloy steel specification. GCr15 is equivalent to AISI 52100, DIN 100Cr6. Most applications can replace each others.
Chemical Composition
|
Grades
|
C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
|
GCR5/52100
|
0.95-1.05 | 0.15-0.35 | 0.2-0.4 | ≤0.027 | ≤0.02 | 1.3-1,65 | ≤0.1 | ≤0.25 | ≤0.3 |
|
100Cr6
|
0.95-1.05 | 0.15-0.35 | 0.250-0.45 | ≤0.025 | ≤0.05 | 1.4-1.65 | ≤0.08 | ≤0.25 | ≤0.3 |
Heat Treatment
|
Quenching
|
Temping | ||||
|
Heating Temperature/℃
|
Cooling | Hardness/HRC | Heating Temperature/℃ | Coling | Hardness/HRC |
|
830-850
|
oil | 62-65 | 150-190 | Air | 58-65 |
Mechanical Properties of ASTM A295 52100 Bearing Steel
|
Properties |
Metric | Imperial |
|
Bulk modulus(typical for steel) |
140 GPa | 20300 ksi |
| Shear modulus(typical for steel) | 80 GPAa | 11600 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Hardness,Brinell | - | - |
| Hardness,Knoop (converted from rockwell C hardness) | 875 | 875 |
| Hardness,Rockwell C (quenched in oll from 150℃ temperde) | 62 | 62 |
| Hardness,Rockwell C (quenched in water 150℃ temperde) | 64 | 64 |
| Hardness,Rockwell C (quenched in oll) | 64 | 64 |
| Hardness,Rockwell C (quenched in water) | 66 | 68 |
| Hardness,Vick(converted from Rockwell C hardness) | 848 | 848 |
| Machinability(spheroidized annealed and cold draw.Based on 100 machinabilit for AISI 1212 steel) | 40 | 40 |
Applications
1. 1 For making all kinds of bearing ring and rolling element, such as steel ball roller and ferrule of inernal combustion engine, electric motorcycle, automonilrd tractors, machine tools, rolling mill, boring machine, mining machinery, general machinery, high load and high speed roating mechanical transmission bearing.
2. 2. Sometimes also used to make tools, such as pumching die and measuring tools
3. 3 The automotive and aircraft industry use Alloy Steel 52100 for a number of different applications including:
● Anti-friction bearings
● Mill rolls
● Taps
● Punches
● Aircraft parts
