| Shape: | Round Or Square Or Hexagonal | Alloy Or Not: | Alloy/ Stainless Steel |
|---|---|---|---|
| Type: | Titanium Bars | Technique: | Forged |
| Steel Grade: | GR1,GR2 , GR5 | Standard: | ASTM B 348 |
| Application: | Industrial | Product Name: | Square Bars |
| High Light: | 6m Evergrowrs Forged Square Bar,Evergrowrs 6m Forged Square Bars,6m Evergrowrs alloy steel flat bar |
||

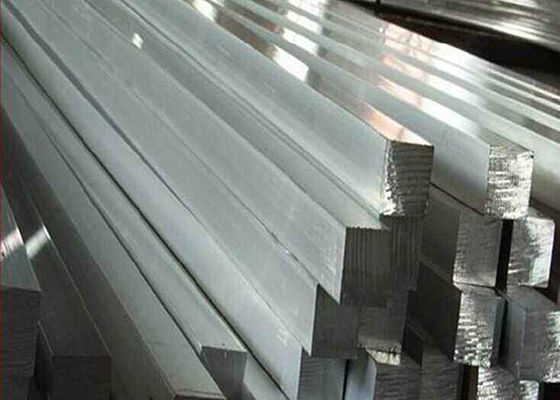

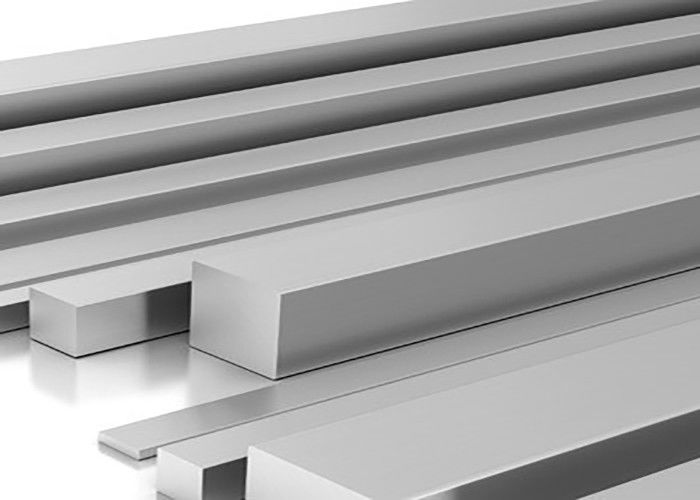

ASTM 348 Silvery Wihte Max 6000mm Titanium Bars Forged Square Bar
Forged Square Bar Specifications:
| Product name | Forged Square Bar |
| Type | GR1 GR2 GR3 GR4 GR5 Ti-6AL-4V Ti-6AL-4VELI GR7 GR9 GR23 |
| Standard | ASTM B348, ASTM F67, ASTM F136, AMS 4928, ASTM F1295, MIL-T-9047G, ISO5832-2, ISO5832-3 |
| Specification |
Diameter:5-350mm Length:Max6000mm |
| Certificate | ISO 9001:2008; The third test report; TÜV Rheinland; Supplier Assessment Certificate |
| Tensile Requirements | |||||
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| Ksi | Mpa | Ksi | Mpa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |
We offer a wide range of pure titanium and titanium alloy bars and titanium rods from China. Apart from round bars we also offer titanium bars in different profiles (square, rectangular, hexagonal). Bars made of molybdenum, wolfram, nickel as well as zirconium are also available.
Product Processing
Production Inspection
Our heat treatment center with complete product testing equipment, for instance: the scanning electron micro sconezz(SEM).the transmission electron microscope(TEM)the material testing machine. the large-type metallurgical microscope,the endurance testing machine,the IAS-4 image analyzer, the American ARL direct- reading spectrometer, the American the electric ICP emission spectrometer, the American LECO infrared carbon sulfur analyzer, the hydrogen analyzer, the oxygen and nitrogen analyzer,the Swiss end harden ability tester, the German Zeiss inverted microscope, the Japanese CARTON stereo microscope, the 500J impact testing machine, the 500N hydraulic universal tester, the water immersion flaw detector, the radio element detector and so on.
Evergrowing aim:
Competitive price: try best to make best offer
Top quality: 100% comply with customer's standard
JIT delivery: Delivery on time for each order.
One station purchase:we try to supply the material with different condition to our customers.
After service: Response on any quality question and etc.
