Product Details:
Payment & Shipping Terms:
|
| Shape: | C Channel | Special Use: | Free Cutting Steel |
|---|---|---|---|
| Technique: | Hot Rolled | Surface Treatment: | Natural/Galvanized Coated |
| Grade: | Q345B | Product Name: | H-Beam Section Steel |
| HS Code: | 72163100 | Perforated Or Not: | Not Perforated |
| High Light: | 5m hot rolled section steel,Q345B hot rolled section steel,JIS hot rolled beam |
||

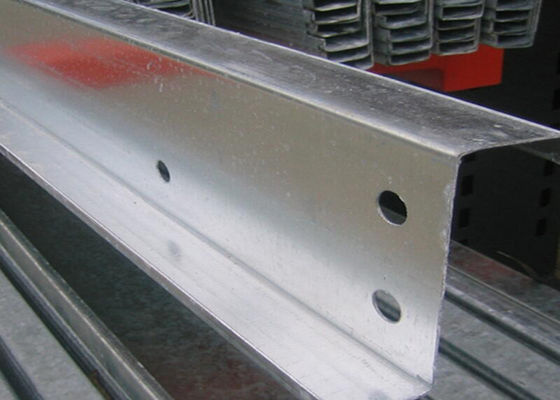

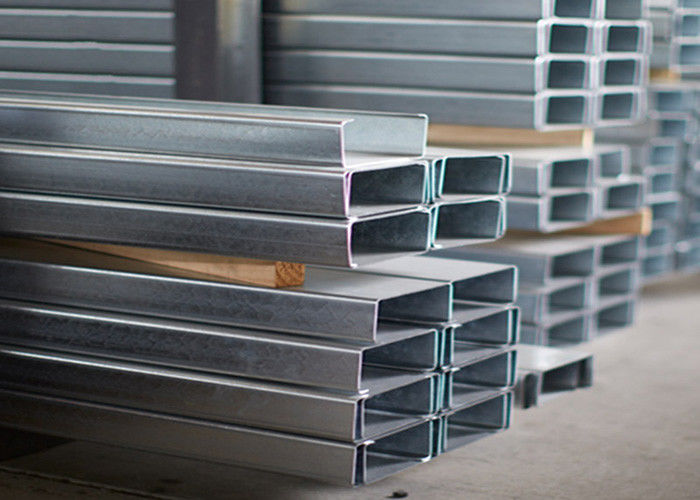

U Beam Steel / U-Bar Galvanized Coated 5000mm Rolled Steel Sections
Specifications of C Channel Section Steel
Construction steel or Structural steel is a category of steel used for making construction materials in a variety of shapes. Many structural steel shapestake the form of an elongated beam having a profile of a specific cross section.
Structural steel shapes, sizes, chemical composition, mechanical properties such as strengths, storage practices,etc., are regulated by standards in most industrialized countries.Most structural steel shapes, such as I-beams, have high second moments of area, which means they are very stiff in respect to their cross-sectional area and thus can support a high load without excessive sagging.
Our stuff engaged in construction steel over 10 years in Hebei and Shandong,thus we could secure best quality
resources from mills.
|
JIS |
UPN |
UPE |
|||
|
Size(mm) |
Theoretical weight(kg/m) |
Size(mm) |
Theoretical weight(kg/m) |
Size(mm) |
Theoretical weight(kg/m) |
|
75*40*3.8 |
5.3 |
80*45*6.0 |
8.64 |
80*40*4.5 |
7.05 |
|
75*40*5.0 |
6.92 |
100*50*6.0 |
10.6 |
100*46*4.5 |
8.59 |
|
100*50*3.8 |
7.3 |
120*55*7.0 |
13.4 |
120*52*4.8 |
10.4 |
|
100*50*5.0 |
9.36 |
140*60*7.0 |
16 |
140*58*4.9 |
12.3 |
|
125*65*5.2 |
11.66 |
160*65*7.5 |
18.8 |
160*64*5.0 |
14.2 |
|
125*65*6.0 |
13.4 |
180*70*8.0 |
22 |
180*70*5.1 |
16.3 |
|
150*75*5.5 |
14.66 |
200*75*8.5 |
25.3 |
200*76*5.2 |
18.4 |
|
150*75*6.5 |
18.6 |
|
|
|
|
|
GB Standard |
|||||
|
50*37*4.5 |
5.438 |
140*60*8.0 |
16.733 |
200*75*9.0 |
25.777 |
|
63*40*4.8 |
6.634 |
160*63*6.5 |
17.24 |
250*78*7.0 |
27.41 |
|
80*43*5.0 |
8.045 |
160*65*8.5 |
19.752 |
250*80*9.0 |
31.335 |
|
100*48*5.3 |
10.007 |
180*68*7.0 |
20.174 |
300*85*7.5 |
34.463 |
|
120*53*5.5 |
12.059 |
180*70*9.0 |
23 |
300*87*9.5 |
39.173 |
|
140*58*6.0 |
14.535 |
200*73*7.0 |
22.637 |
|
|
Our Related Products
Product Processing
Production Inspection
Our heat treatment center with complete product testing equipment, for instance: the scanning electron micro sconezz(SEM).the transmission electron microscope(TEM)the material testing machine. the large-type metallurgical microscope,the endurance testing machine,the IAS-4 image analyzer, the American ARL direct- reading spectrometer, the American the electric ICP emission spectrometer, the American LECO infrared carbon sulfur analyzer, the hydrogen analyzer, the oxygen and nitrogen analyzer,the Swiss end harden ability tester, the German Zeiss inverted microscope, the Japanese CARTON stereo microscope, the 500J impact testing machine, the 500N hydraulic universal tester, the water immersion flaw detector, the radio element detector and so on.
Evergrowing aim:
Competitive price: try best to make best offer
Top quality: 100% comply with customer's standard
JIT delivery: Delivery on time for each order.
One station purchase:we try to supply the material with different condition to our customers.
After service: Response on any quality question and etc.
